Anti-Vibration Mounts each
Anti-vibration mounts are a product which allows the cushioning of vibration in various areas such as cars, mechanical aides etc.
The selection we have in stock comes in various sizes and are male/male ends with already pre-bolted steel screws.

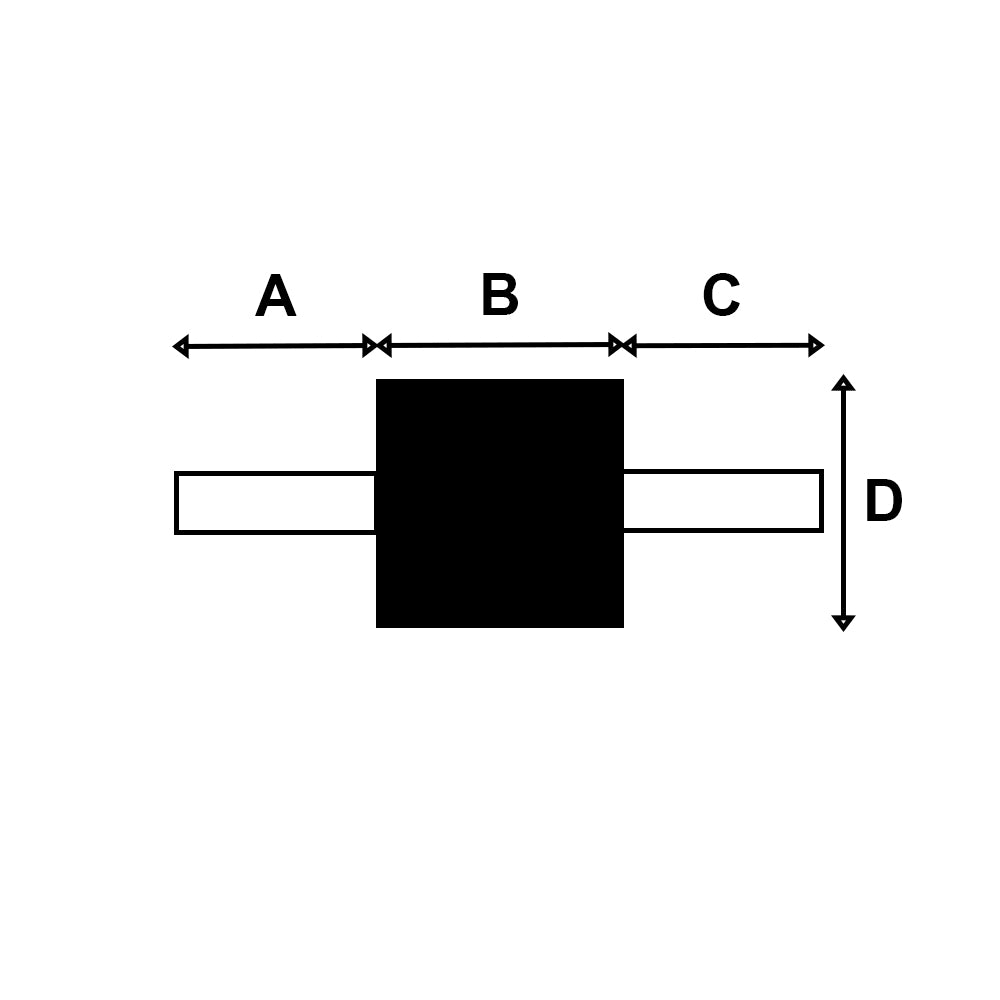

The M stands for metric measurement, as well as millimetres and identifies the size of the bolt. For example M6 refers to 6mm diametre bolt, M8 is 8mm and M10 is 10mm. The table below identifies the measurements of each vibration mount. A and C are the measurement of which the bolt extrudes out from the rubber. B is the size (length) of the mount and D is the diametre of the mount.
The number which follows after 'x' in the left hand hand column specifies the length of the screw in millimetres. The third column specifies the hardness of the vibration mount and the thread pitch of the bolt.
Knowing these sizes will help you choose the right vibration mount for your car or machinery such as tractors, ride on mowers etc.
Below is an approximate size guide of our various stock options.

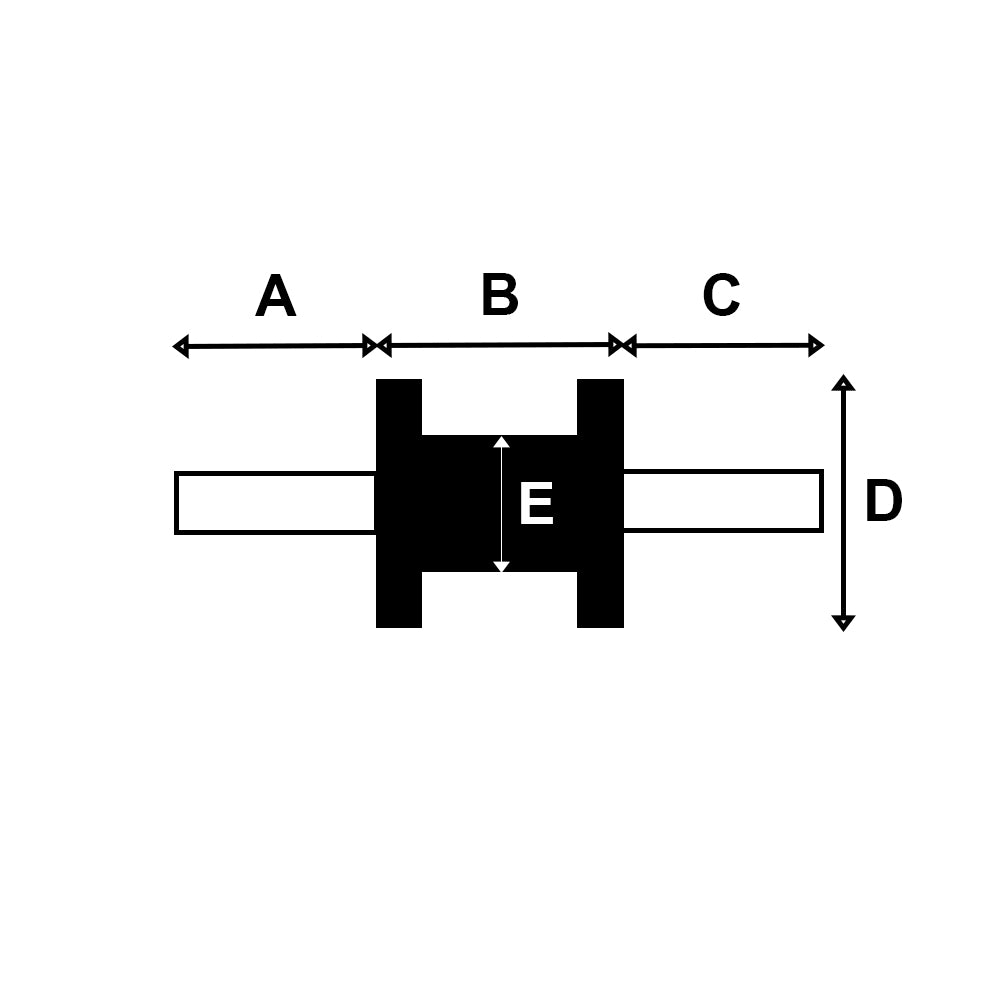

Kindly refer to the last 2 photos.
| PART No. | DURO | A(mm) | B(mm) | C(mm) | D(mm)Dia | E(mm) | BOLT |
| M6 x 25 | 65 | 13 | 21 | 13 | 26 | N/A | M6 x 1.0" |
| M8 x 32 | 65 | 22 | 31 | 22 | 40 | N/A | M8 x 1.25" |
| M8 x 32 Curved | 65 | 22 | 25 | 22 | 30 | 24 | M8 x 1.25" |
| M10 x 32 | 65 | 27 | 46 | 27 | 51 | N/A | M10 x 1.25" |
| M10 x 32 Curved | 65 | 27 | 36 | 27 | 56 | 45 | M10 x 1.25" |
